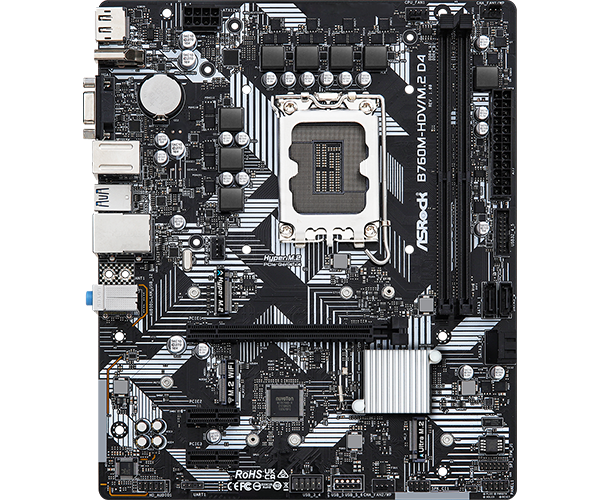

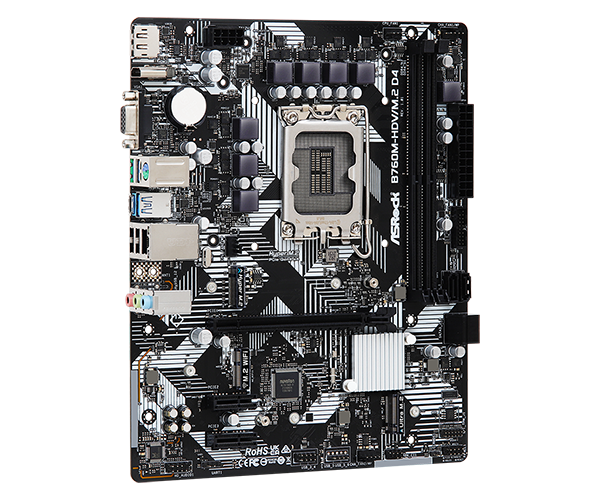

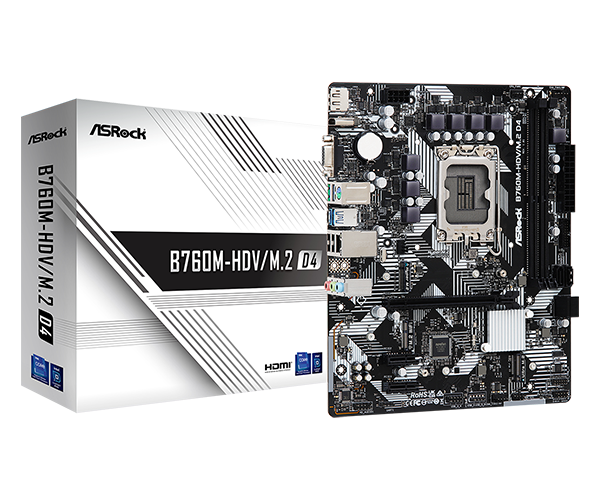

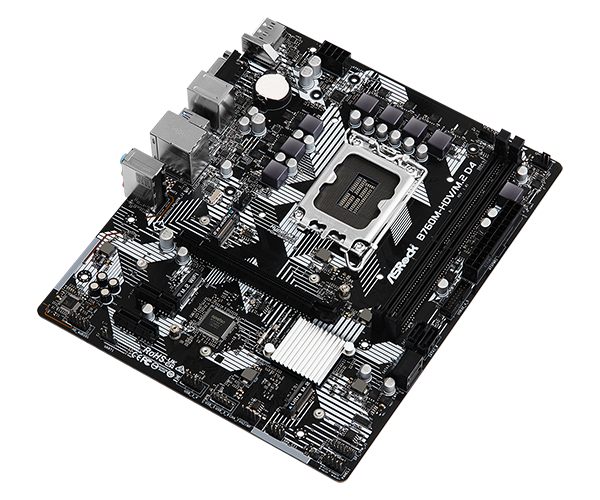

MB s1700 ASRock B760M-HDV/M.2 D4 90-MXBL40-A0UAYZ

Name: MB s1700 ASRock B760M-HDV/M.2 D4 90-MXBL40-A0UAYZ - Market na Netu
SKU: 29872
Price: 10990.90 RSD
Availability: InStock

10.990,90 RSD

Možete poručiti i pozivom na 0616494537

Mogućnost plaćanja pouzećem, kartično plaćanje, virmanski, kupovinom na rate Banca Intesa karticama ,predračunom za pravna lica.

10 na zalihama

Besplatna dostava

Vreme dostave od 1-3 radna dana.

Ukoliko poručujete kao pravno lice preko računa firme POŠALJITE EMAIL NA info@marketnanetu.rs ili pozovite 0616494537 i upišite podatke za dostavu i u napomeni podatke firme PIB i email adresu. Na email adresu ćemo poslati predračun za uplatu.

100 % SIGURNA KUPOVINA --- POVRAT ROBE DO 14 DANA--- ZAGARANTOVAN POVRAT NOVCA

Dodaj da uporediš

Dodaj u listu želja

Šifra proizvoda: 29872 Kategorija: Matične ploče

Opis
Poručivanje i dostava

Opis

Unique Feature

Rock-Solid Durability
– 5+1+1 Power Phase
EZ Update
– ASRock Auto Driver Installer

CPU

– Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors (LGA1700)
– Supports Intel^® Hybrid Technology
– Supports Intel^® Turbo Boost Max 3.0 Technology
– Supports Intel^® Thermal Velocity Boost (TVB)
– Supports Intel^® Adaptive Boost Technology (ABT)

Chipset

– Intel^® B760

Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel^® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

BIOS

– 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

– Intel^® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

LAN

– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H

Slots

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Supports NVMe SSD as boot disks

Storage

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel^® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

RAID

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

– 1 x USB 3.2 Gen1 Type-C (Rear)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 5 x USB 2.0 (2 Rear, 3 Front)
* All USB ports support ESD Protection

Connector

– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

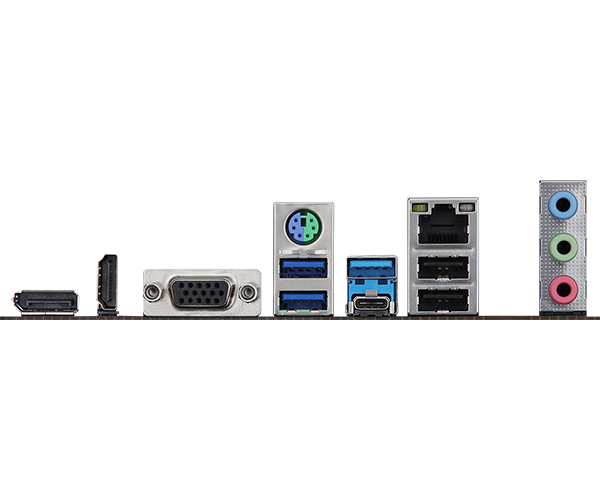

Rear Panel I/O

– 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets

Form Factor

– Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

OS

– Microsoft^® Windows^® 10 64-bit / 11 64-bit

Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Poručivanje i dostava

Dostava se vrši posredstvom bEX kurirske službe od 1-3 dana. Dostava za proizvode preko 1000 rsd je besplatna. Pored imena i adrese, neophodno je da ostavite broj telefona, kako bi kurir mogao da Vas kontaktira prilikom isporuke. Kuriska služba vrši isporuku proizvoda od 8 do 16h, radnim danima (upišite adresu za dostavu na kojoj ćete biti u tom periodu). Subotom i nedeljom nije moguće preuzimanje pošiljaka. Možete poručiti klikom na dugme PORUČI ,porukom,pozivom na kontakt telefon 0616494537 ,viber,mesenger ili sa stranica FB i IG u dm. Plaćanje se vrši pouzećem,platnim karticama,uplatom na račun firme. Cena dostave za sve porudžbine je 400 din, bez obzira na broj poručenih proizvoda, dok je BESPLATNA DOSTAVA za sve porudžbine proizvoda u vrednosti preko 1.000 dinara! Možete uplatiti putem Vaše mobilne/ebanking aplikacije ili u bilo kojoj pošti ili banci, na račun firme 160-6000002017448-20. Ukoliko želite kupovinu za firmu kontaktirajte nas na info@marketnanetu.rs za više informacija.

Kontakt podrške

Širom zemlje

MB s1700 ASRock B760M-HDV/M.2 D4 90-MXBL40-A0UAYZ

Možete poručiti i pozivom na 0616494537

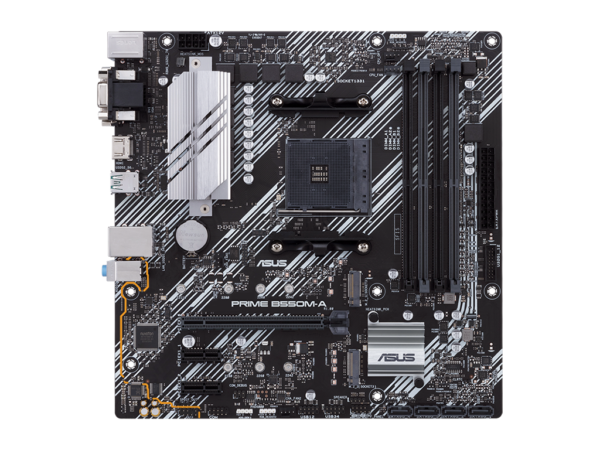

Maticna ploca ASUS PRIME B550M-A/CSM/AM4

Maticna ploca ASUS PRIME B650M-K/AM5

Maticna ploca ASUS PRIME B760M-A DDR4 CSM/LGA1700

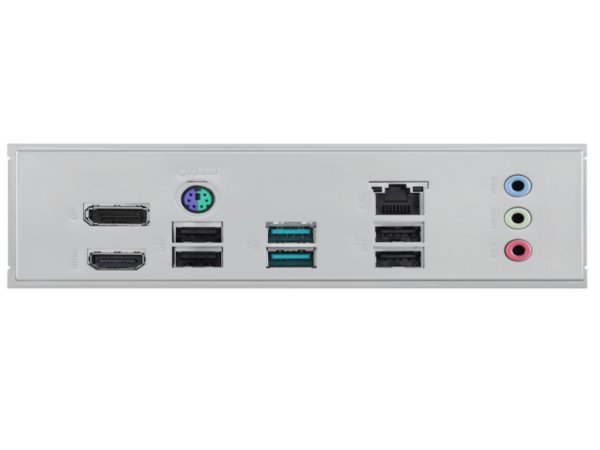

Maticna ploca ASUS PRIME B760M-PLUS/LGA1700
